BT Bluetooth dongle 3 in1 Wireless Handheld 2D Barcode Scanner
Product Parameters
| Scan Type | CMOS |
| Light Source | lighting: white LED Aiming; Red LED,wavelength coverage 525nm |
| CPU | ARM32-bit |
| Resolution | 640×480 CMOS |
| Resolution | 20-550mm |
| Start up time | 4s |
| Decoding speed | 25CM/S |
| Depth of field | 3mil:55~100mm,13mil:55~350mm |
| Scan Mode | Trigger mode,Auto sense mode |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Visual angle | Horizontal 40°× Vertical 30° |
| Print Contrast Signal | ≥25% PCS |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | 1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT
2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |

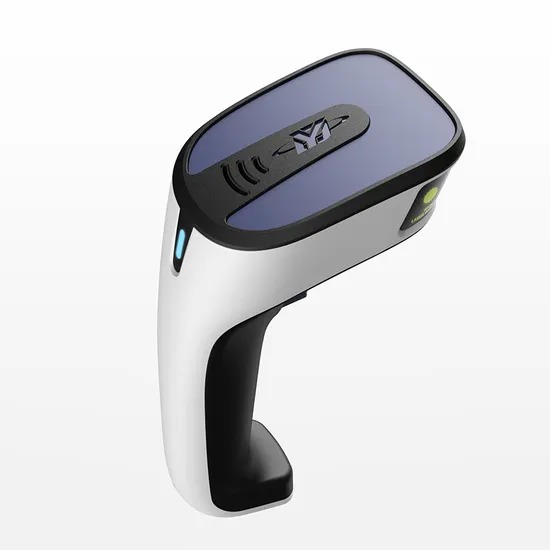

Detailed Photos
Packaging & Shipping
FAQ
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
Q6: What are your strengths?
DYscan: We are a professional scanner manufacturer. The company is divided into different departments, each with its own director. The R&D department is responsible for the development of new products. The production department is responsible for the production and testing of products. The Marketing and Sales department consists of the sales team, and customer services.
Q7: Do I need to install drivers?
DYscan: No. Our scanners support plug and play. No drivers need to be installed. It can be used in Windows, Mac OS, IOS, Linux, UNIX, Android, etc.
